Laue cameras
WSXC10 camera is designed to hold crystals in the process of determining crystallographic orientation using Laue back reflection. The diffracted beams are registered by the wet film photographic method.
WSXC-10 X-Ray camera is a set consisting of :
•WSG01 goniometer
•125 mm long optical track
•target screen with colimator and film holder
•special adapter that fixes the goniometer on the wire saw horizontal cariage.
A crystal can be rotated 360° in one axis with 0.1° vernier and 120° in second axis with 0.1° vernier. The goniometer can be fixed to the WS-22 , WS-22B Wire Saw. The crystal is cemented to a mounting table which is the central element of the goniometer. There are precision rises available toincrease the height of the goniometer when working with crystals that are too small to reach the beam. If the face of the crystal is rotated to a position that is not in the path of the x-ray or optical beam, the table can be moved up to 10 mm on either side of center in order to realign the crystal with the x-ray or optical beam. After the crystal is properly oriented, the whole goniometer is transferred to a saw for cutting the oriented surfaces or slices.
WSXC-10 camera is constructed of hard stainless material. The scales are deeply engraved and filled with a black ink.
WSXC-10 X-Ray camera is a set consisting of :
•WSG01 goniometer
•125 mm long optical track
•target screen with colimator and film holder
•special adapter that fixes the goniometer on the wire saw horizontal cariage.
A crystal can be rotated 360° in one axis with 0.1° vernier and 120° in second axis with 0.1° vernier. The goniometer can be fixed to the WS-22 , WS-22B Wire Saw. The crystal is cemented to a mounting table which is the central element of the goniometer. There are precision rises available toincrease the height of the goniometer when working with crystals that are too small to reach the beam. If the face of the crystal is rotated to a position that is not in the path of the x-ray or optical beam, the table can be moved up to 10 mm on either side of center in order to realign the crystal with the x-ray or optical beam. After the crystal is properly oriented, the whole goniometer is transferred to a saw for cutting the oriented surfaces or slices.
WSXC-10 camera is constructed of hard stainless material. The scales are deeply engraved and filled with a black ink.
The WSXC-10 camera is used for the orientation of single crystal samples where cutting along strictly determined crystallographic planes is
required.
Application:
General Characteristics:
WSXC-10 X-Ray Laue Camera

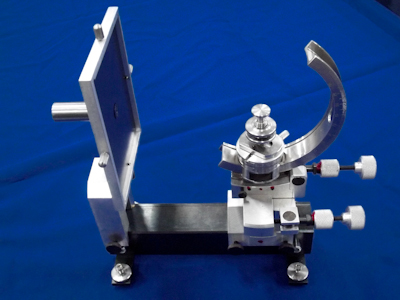

WSXC-22 camera is a set consisting of:
•WSG-02 goniometer
•250mm long optical track
•target screen with colimator and special film holder
WSXC-22 camera is designed to hold crystals in the process of determining crystalografic orientation using Laue back reflection or transmition techniques. The crystal is cemented to a mounting table which is the central elememt of the goniometer. There are precision rises available to increase the height of the table when working with crystals that are too small to reach the beam. If the face of the crystal is rotated to a position that is not in the path of the X-ray the table can be moved up to 10 mm on either side of center in order to realign the crystal with the X-ray beam. Crystal can be rotated 360° around axis which makes circulation around horizontal axis with range of 140° and vernier of 0.5’ and vertical axle in range of ±10° and vernier of 0.5’. After orientation goniometer is fixed on Unipress precision wire saw horizontal cariage to cut sample along ealier determined crystalographic plane.
WSXC-22 camera is constructed of hard stainless material. The scales are deeply engraved and filled with a black ink.
•WSG-02 goniometer
•250mm long optical track
•target screen with colimator and special film holder
WSXC-22 camera is designed to hold crystals in the process of determining crystalografic orientation using Laue back reflection or transmition techniques. The crystal is cemented to a mounting table which is the central elememt of the goniometer. There are precision rises available to increase the height of the table when working with crystals that are too small to reach the beam. If the face of the crystal is rotated to a position that is not in the path of the X-ray the table can be moved up to 10 mm on either side of center in order to realign the crystal with the X-ray beam. Crystal can be rotated 360° around axis which makes circulation around horizontal axis with range of 140° and vernier of 0.5’ and vertical axle in range of ±10° and vernier of 0.5’. After orientation goniometer is fixed on Unipress precision wire saw horizontal cariage to cut sample along ealier determined crystalographic plane.
WSXC-22 camera is constructed of hard stainless material. The scales are deeply engraved and filled with a black ink.
The WSXC 22 camera is used for the orientation of single crystals samples using transmition or back reflection X-ray Laue method.
Application:
General Characteristics:
WSXC-22 X-Ray Laue Camera
